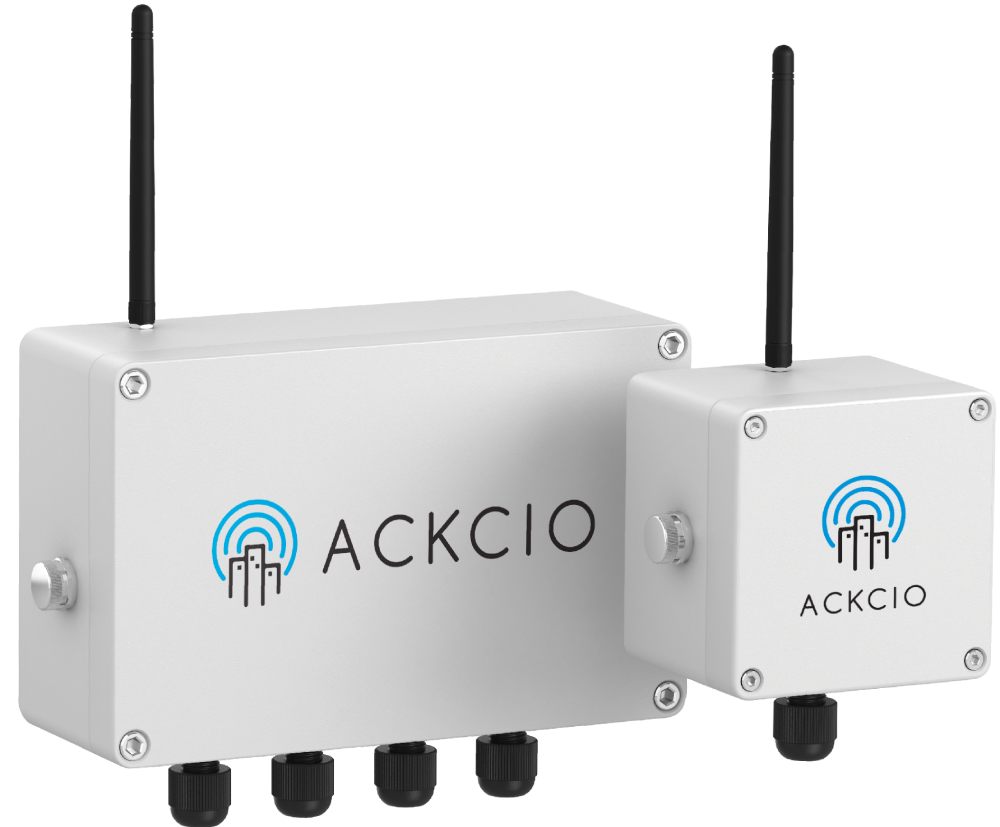

Analogue Nodes
For analogue-output instruments.
Ackcio Analogue Nodes come in two formats: 1-Sensor (BEAM-AN-S1) and 4-Sensor (BEAM-AN-S4), based on the number of sensors the Nodes can be connected with. The nodes are compatible and have been field tested with analogue sensors from all the major instrument Manufacturers.
Request a quote
Analogue Nodes Details
Analogue Nodes are compatible with sensors having analogue voltage or current-loop outputs like MEMS tilt meters, water level sensors, etc.
- Specifications
- Downloads
| BEAM-AN-S1 | BEAM-AN-S4 | |
|---|---|---|
| Sensors: | 1 Bi-Output Sensor + 1 Thermistor | 4 Bi-Output Sensors + 4 Thermistors |
| Size: | 10 cm x 10 cm x 8 cm | 22 cm x 10 cm x 8 cm |
| Sensor Supply Voltage: | 5 V / 12 V / 24 V | |
| Measurement Range: | ±5 V / ±2.5 V / 4-20 mA | |
| Resolution: | 24-bit ADC | |
| Accuracy: | 0.05% FS | |
| Thermistor Range: | -40 °C to +80 °C (0.1 °C Resolution) | |
| Thermistor Accuracy: | 0.05% FS | |
| Wireless Radio: | Sub-1 GHz Band (400 MHz / 700 MHz / 800 MHz / 900 MHz) | |
| Operating Temperature: | -40 °C to +85 °C | |
| Protection: | IP 66 | |
ACKCIO BEAM Product Specifications
Download(10.3 MB)
Vibrating Wire Nodes
For vibrating wire instruments.
Ackcio Vibrating Wire Nodes come in two formats: 1-Sensor (BEAM-VW-S1) and 8-Sensor (BEAM-VW-S8). The nodes are compatible and have been field tested with vibrating wire sensors from all the major instrument manufacturers.
Request a quote
Vibrating Wire Nodes Details
Vibrating Wire Nodes are compatible with sensors having vibrating wire outputs like strain gauges, load cells, piezometers, etc.
- Specifications
- Downloads
| BEAM-VW-S1 | BEAM-VW-S8 | |
|---|---|---|
| Sensors: | 1 VW Sensor + 1 Thermistor | 8 VW Sensors + 8 Thermistors |
| Size: | 10 cm x 10 cm x 8 cm | 22 cm x 10 cm x 8 cm |
| Frequency Range: | 100 Hz to 8000 Hz | |
| Frequency Accuracy: | 0.01% FS | |
| Thermistor Range: | -40 °C to +80 °C | |
| Thermistor Resolution: | 0.1 °C | |
| Thermistor Accuracy: | 0.1% FS | |
| Wireless Radio: | Sub-1 GHz Band (400 MHz / 700 MHz / 800 MHz / 900 MHz) | |
| Operating Temperature: | -40 °C to +85 °C | |
| Protection: | IP 66 | |
ACKCIO BEAM Product Specifications
Download(10.3 MB)

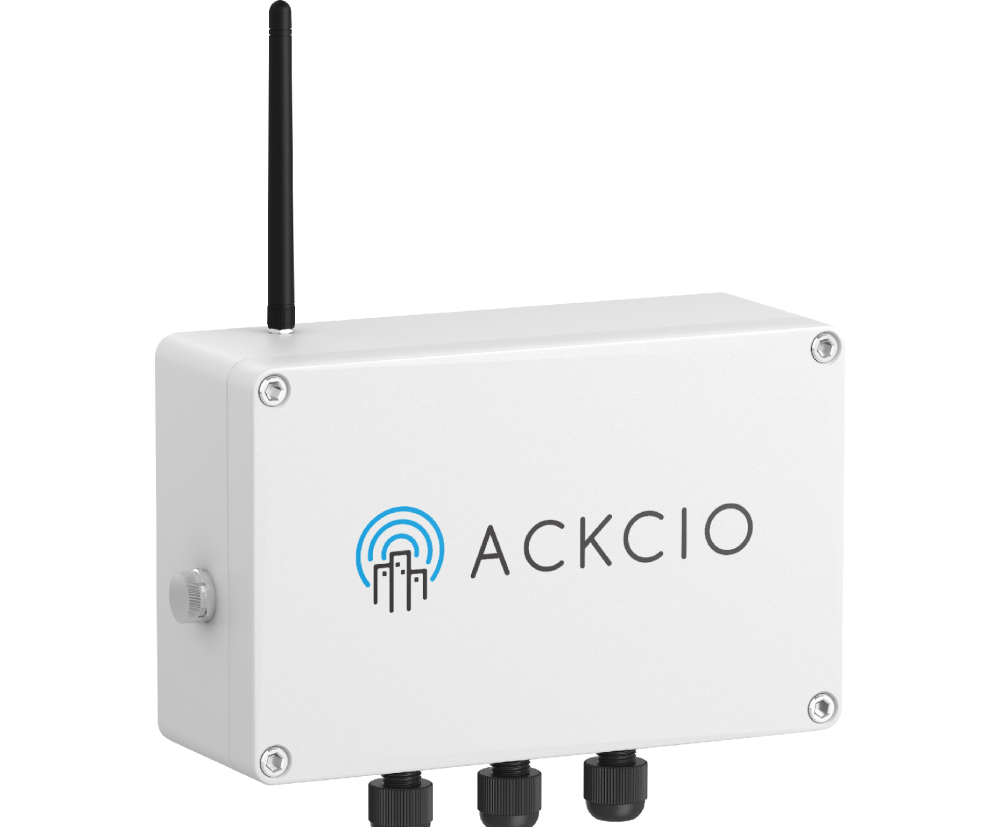

Digital Nodes
For digital-output instruments.
Ackcio Digital Nodes come in a single format (BEAM-DG) that contains three individual sensor channels for RS232, RS485, and SDI-12. Each channel can be interfaced with up to 32 sensors.
Request a quote
Digital Node Details
Digital Nodes are compatible with sensors having digital outputs like digital tilt meters, IPIs, etc.
- Specifications
- Downloads
| BEAM-DG-S3 | ||
|---|---|---|
| Sensors: | 1 Chain each of RS485 Sensors, RS232 Sensors, and SDI-12 Sensors | |
| Size: | 22 cm x 10 cm x 8 cm | |
| Sensor Supply Voltage: | 5 V / 12 V | |
| Supported Protocols: | Modbus RTU (RS485, RS232) and SDI-12 | |
| Supported Manufacturers: | Geokon, RST, Sisgeo, Encardio-rite, Geosense | |
| Wireless Radio: | Sub-1 GHz Band (400 MHz / 700 MHz / 800 MHz / 900 MHz) | |
| Operating Temperature: | -40 °C to +85 °C | |
| Protection: | IP 66 | |
ACKCIO BEAM Product Specifications
Download(10.3 MB)

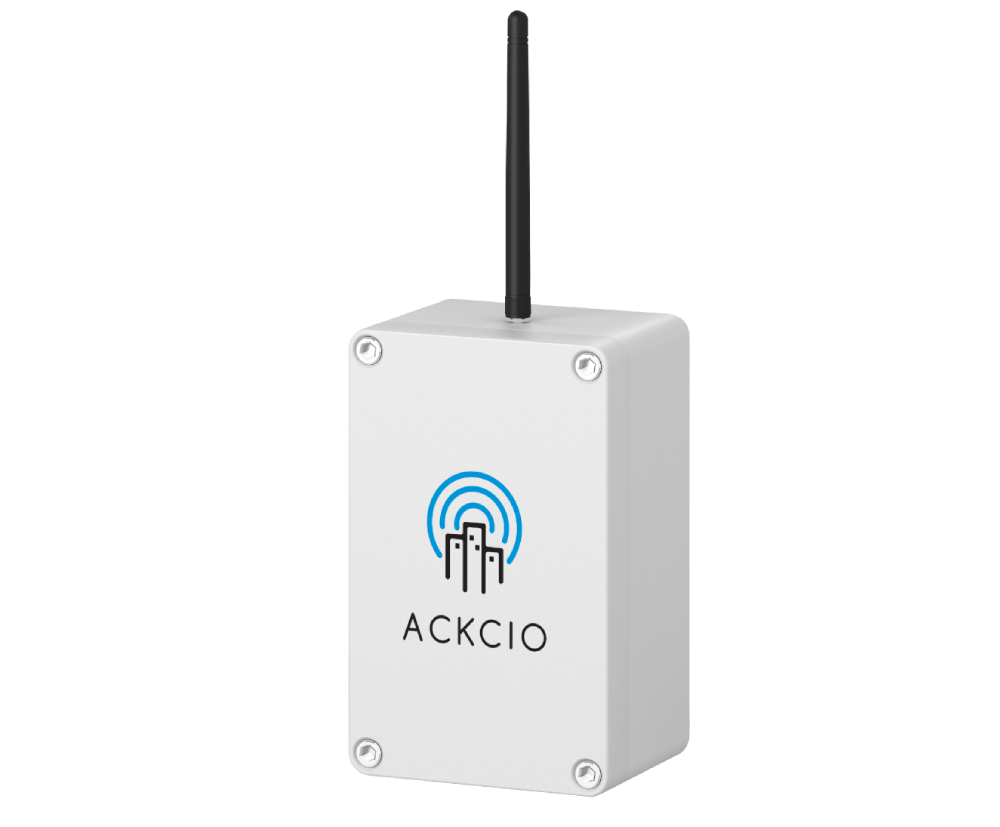

Relay Nodes
For extending network reach
Ackcio Relay (BEAM-RL) Nodes can be deployed to extend the wireless range of Nodes when they are deployed in isolated locations that makes it difficult for them to find a network path to reach the Gateway.
Request a quote
Relay Node Details
The Relay Nodes are useful when the Ackcio Beam solution is deployed in long tunnels or large sites. In these settings, Nodes that don't have access to the Gateway directly could reach it via Relay Nodes.
- Specifications
- Downloads
| BEAM-RL | ||
|---|---|---|
| Size: | 10 cm x 16 cm x 8 cm | |
| Wireless Radio: | Sub-1 GHz Band (400 MHz / 700 MHz / 800 MHz / 900 MHz) | |
| Operating Temperature: | -40 °C to +85 °C | |
| Protection: | IP 66 | |
ACKCIO BEAM Product Specifications
Download(10.3 MB)

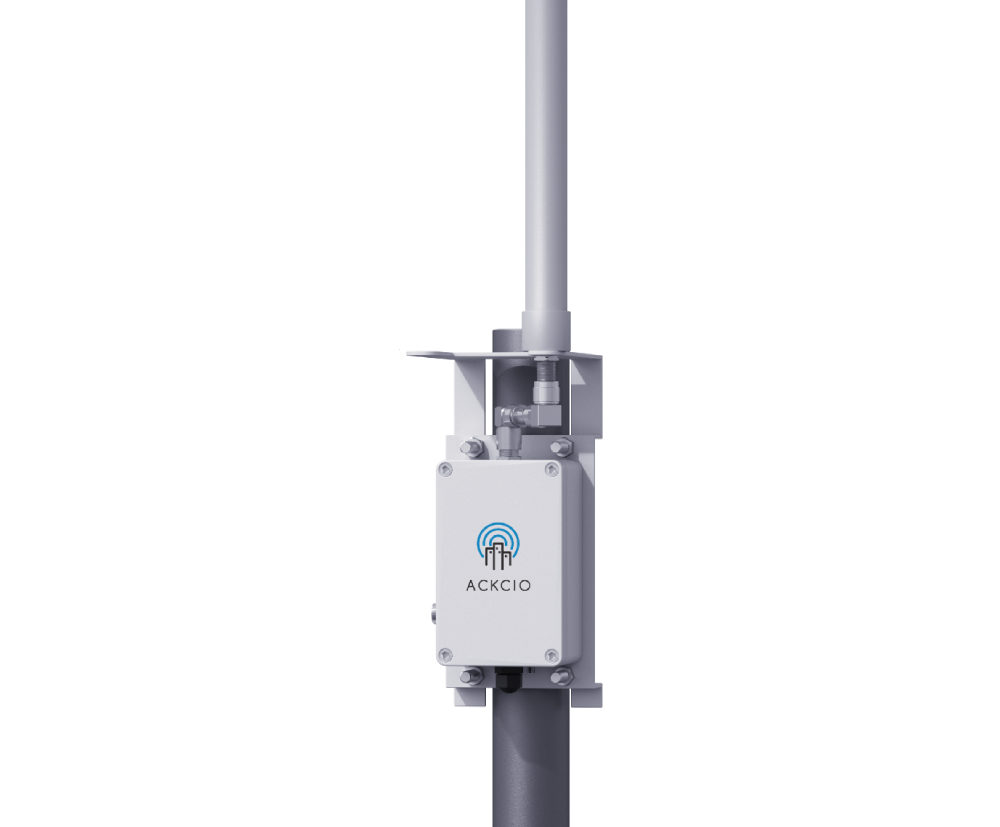

Gateways
For aggregating and uploading data.
Ackcio Gateway (BEAM-GW) receives and aggregates sensor data from Ackcio Nodes. Through the gateway configuration software, it can be configured to upload the sensor data to the Ackcio Cloud or to third-party servers via FTP or API Push.
Request a quote
Gateway Details
The Ackcio Gateway is the central device that manages the entire network of Ackcio Nodes. It collects sensor data from the Nodes in addition to passing control messages throught the network to ensure seamless operations.
- Specifications
- Downloads
| BEAM-GW | ||
|---|---|---|
| Size: | 10 cm x 16 cm x 8 cm | |
| Power Supply: | 12 V DC | |
| Internet Connectivity: | In-built 3G/4G modem / Ethernet | |
| Wireless Radio: | Sub-1 GHz Band (400 MHz / 700 MHz / 800 MHz / 900 MHz) | |
| Operating Temperature: | -40 °C to +85 °C | |
| Protection: | IP 66 | |
ACKCIO BEAM Product Specifications
Download(10.3 MB)

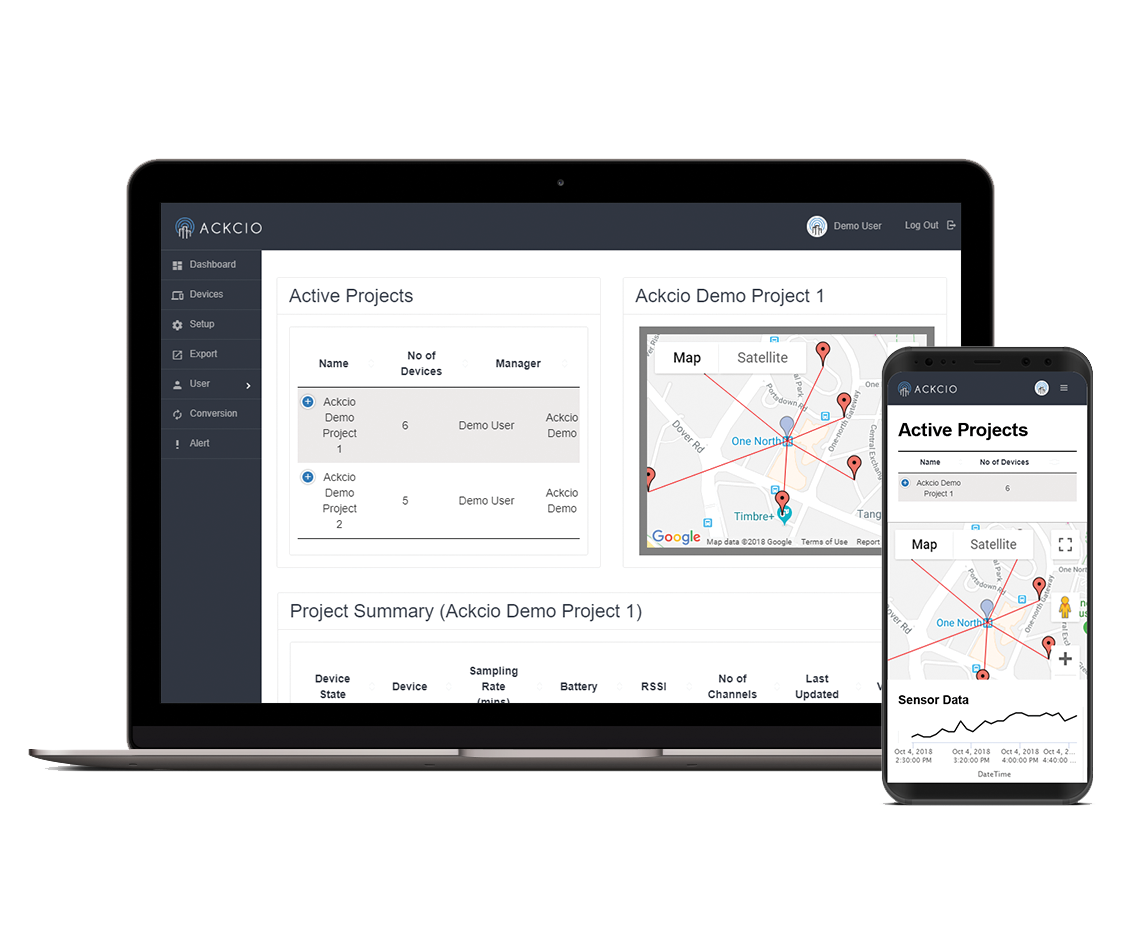

Software Suite
For configuration and data management.
Ackcio Beam solution comes with a comprehensive software suite. It helps you configure the entire system with intuitive and easy-to-use web and smartphone apps. We also provide a cloud-hosted software suite to make your data management work a breeze.
Request a quote
Software Suite Details
Ackcio Beam Gateway and Nodes can be configured using web-based and smartphone-app based software. To make more of the data you collect from your sensors, we provide an optional cloud-hosted data management software.
- Specifications
- Downloads
| BEAM-SW-CONFIG | BEAM-SW-CLOUD |
|---|---|
| Node configuration through Android smartphone app | Built on trusted Microsoft Azure infrastructure |
| Gateway configuration software runs on any device/OS | Change deployment settings from anywhere in the world |
| Obtain sensor readings | Automatic generation of data reports |
